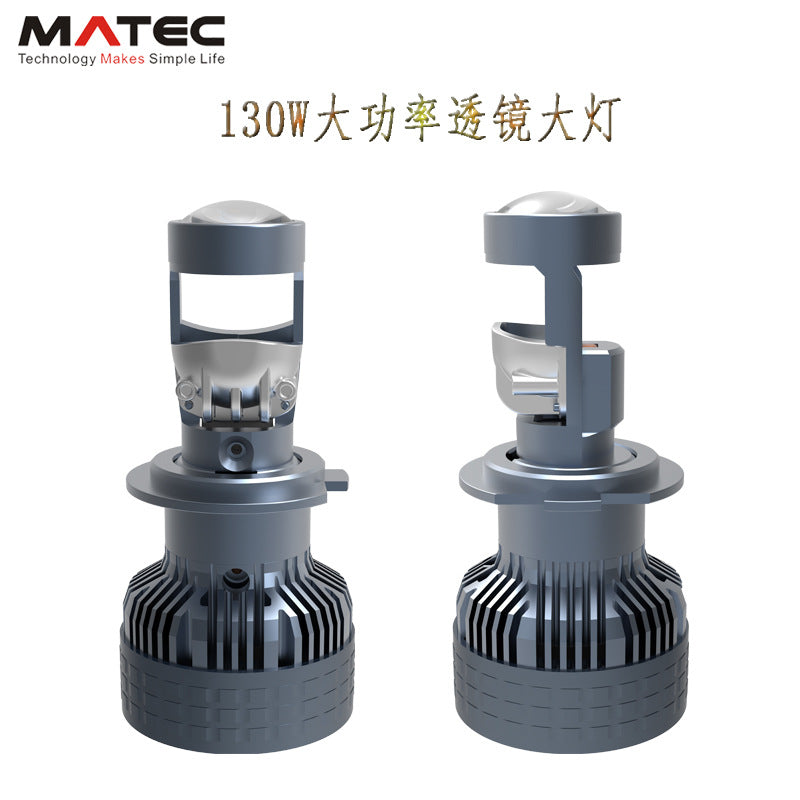

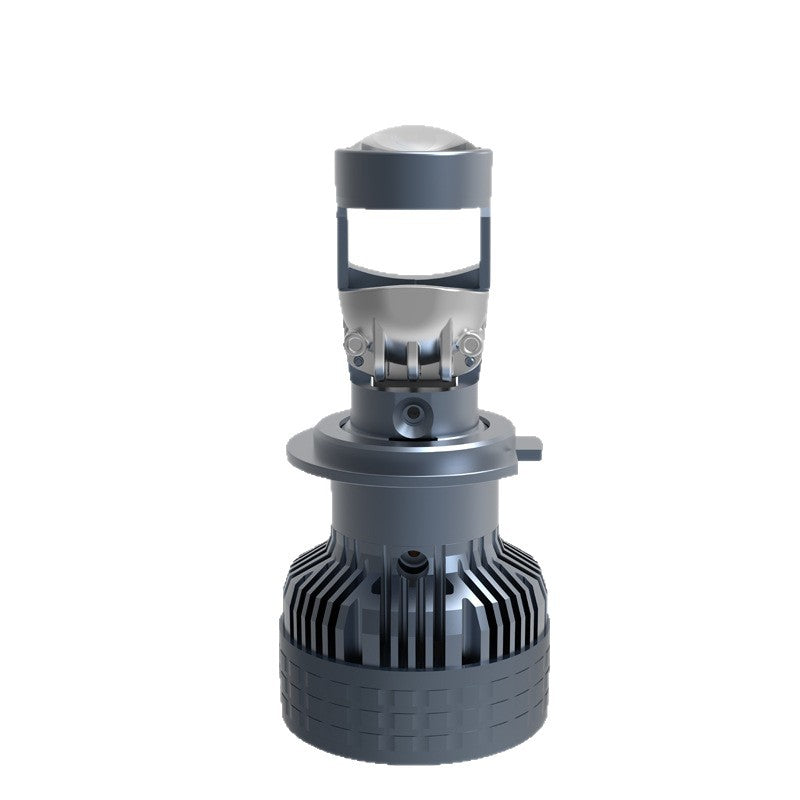

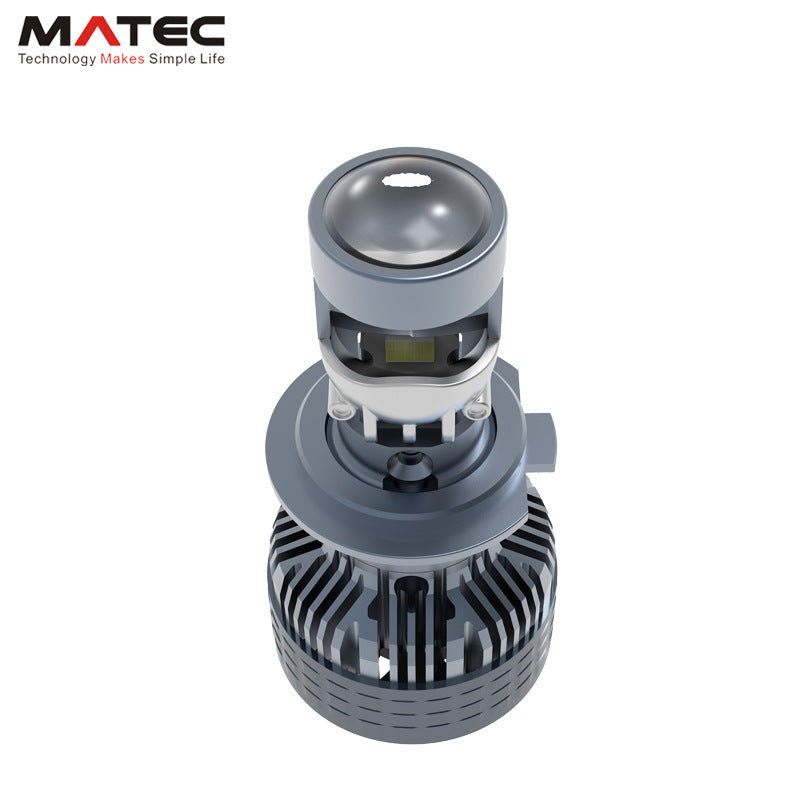

130W High-Power Projector LED Headlight

Upgrade your vehicle's forward lighting performance with the A17 / M01R High-Power Mini Projector Lens LED Headlight Conversion Kit. Engineered to replace standard halogen bulbs directly, this advanced LED projector lens assembly focuses light into a sharp, anti-glare cutoff line that brightens the road by more than 300% while preserving original factory light patterns.

Delivering an intense 130W total power output (65W per bulb) and 13,000 lumens of cool white 6000K illumination, the M01R uses custom 7535 60MU high-power LED chips coupled with an integrated optical projector lens. Built with an aviation-grade aluminum heat-sink body and IP67 waterproof protection, it operates reliably across a wide 9V–36V DC range with built-in high-efficiency decoding to prevent dashboard error codes on most modern vehicles.

Key features and technical specifications include:

* Integrated Mini Projector Lens: Features a built-in optical lens that focuses the beam to project a clean, defined beam pattern and sharp cutoff line without scattering light or blinding oncoming drivers.

* 130W / 13,000LM Ultra-High Brightness: Dual-bulb set produces 130W total actual power (65W single bulb) and 13,000 lumens (6,500LM single bulb), delivering over 3x the luminous output of stock halogen bulbs.

* Custom 7535 60MU High-Power LED Chips: Powered by heavy-duty 7535 LED chip arrays for high light conversion efficiency, uniform illumination, and long-range visibility.

* High-Efficiency Built-In Decoder (Canbus Friendly): Integrated decoding circuit ensures error-free plug-and-play performance across standard 12V automotive systems without flickering or error warnings.

* Compact Direct Plug-In Installation: Compact aluminum housing replaces stock halogen bulbs directly without requiring headlight housing modifications or complex wiring retrofits.

* IP67 Waterproof & Excellent Heat Dissipation: Sealed aluminum alloy body provides IP67 dust and water resistance with a operational service life exceeding 50,000 hours.

* Quality & Safety Certified: Manufactured under IATF 16949 quality management system standards with international CE, FCC, RoHS, and DOT certifications.

* Product Specifications:

* Model / Item Code: A17 / M01R

* Origin: Guangzhou, China

* Product Type: Mini Projector Lens LED Automotive Headlight Assembly

* Primary Material: Aviation-Grade Aluminum Housing

* Operating Voltage Range: 9V – 36V DC (Standard 12V/24V Vehicles)

* Power Consumption: 130W per Pair / 65W Single Bulb

* Luminous Output: 13,000 LM per Pair / 6,500 LM Single Bulb

* Light Source: Custom 7535 60MU LED Chips

* Color Temperature: 6000K Cool White

* Waterproof Rating: IP67 Sealed

* Operating Lifespan: > 50,000 Hours

* Transmission Compatibility: Suitable for Automatic & Manual Transmission Vehicles

* Fitment Type: Universal Direct Replacement Fit

* Certifications: CE, FCC, RoHS, DOT, IATF 16949 Certified

* Cross-Border Export: Exclusive Export Supply Available

* Available Socket Configurations:

* H4 (Dual-Beam Hi/Lo)

* H7 (Single Beam)

* H11 / H8 / H9 (Single Beam)

* 9005 / HB3 (High Beam)

* 9006 / HB4 (Low Beam)

(Note: Pricing listed in wholesale platforms is typically per single bulb unit; standard orders are fulfilled in pairs.)

Whether upgrading night visibility for daily highway commuting or enhancing car lighting aesthetics, the A17 / M01R mini projector LED kit delivers bright, focused, plug-and-play road illumination.
