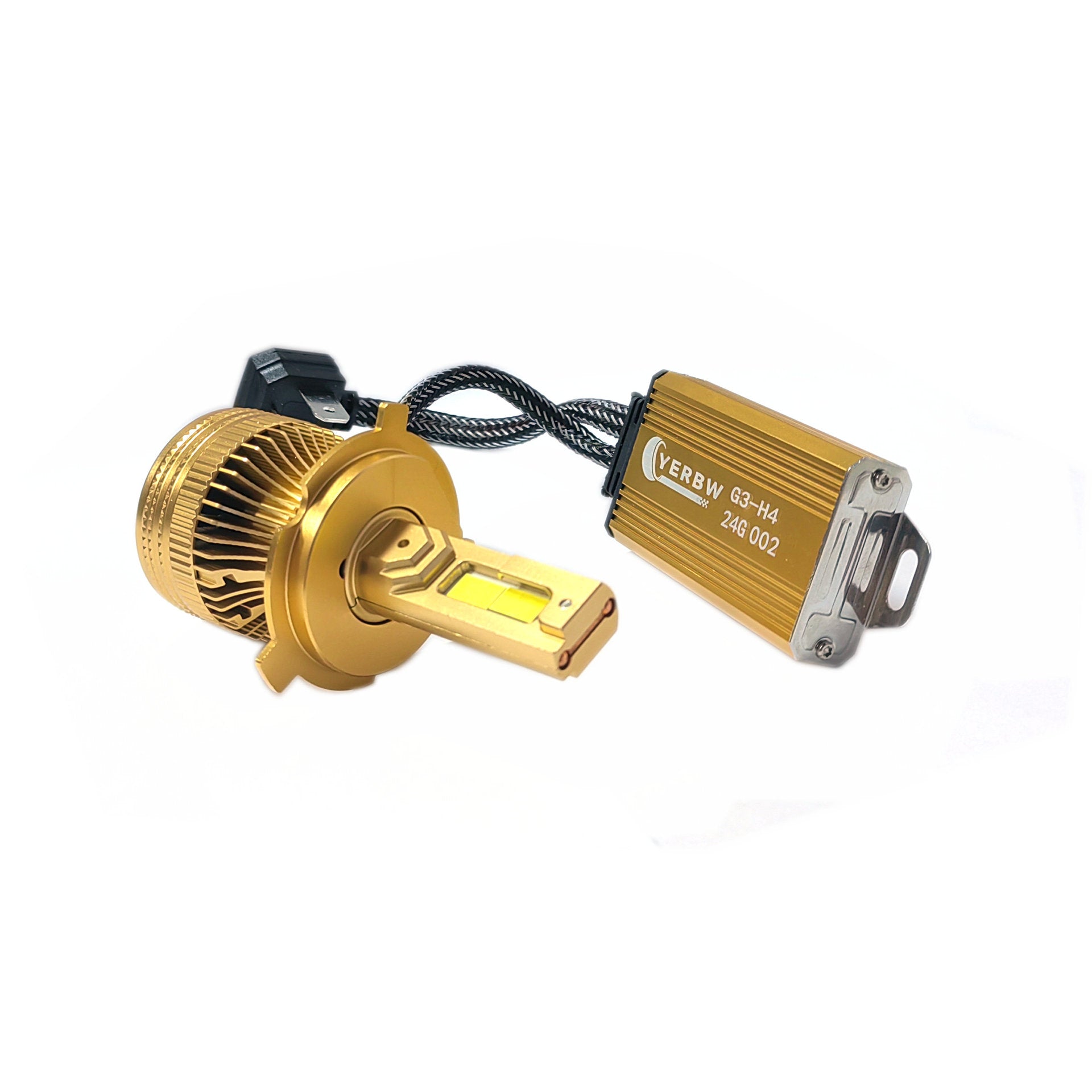

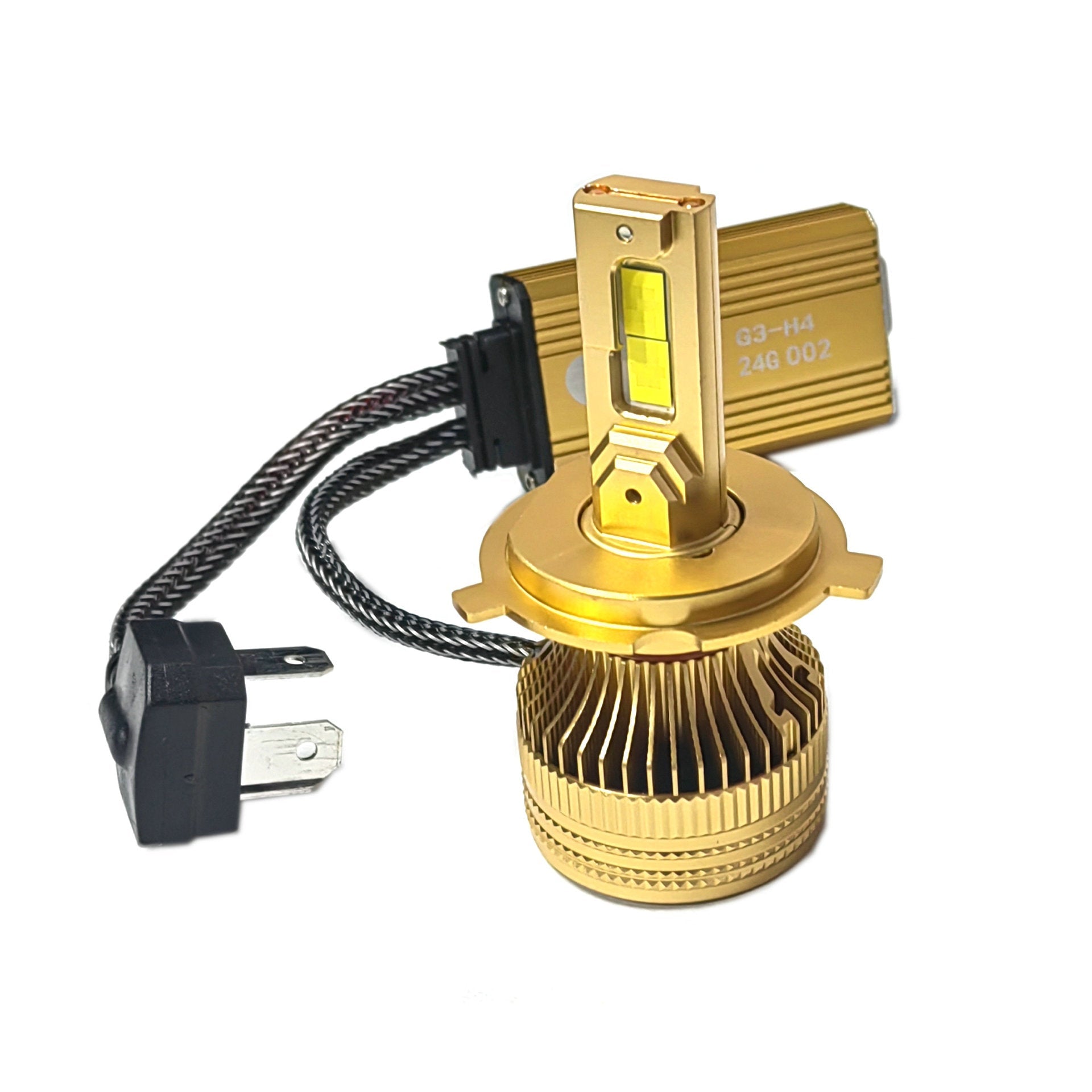

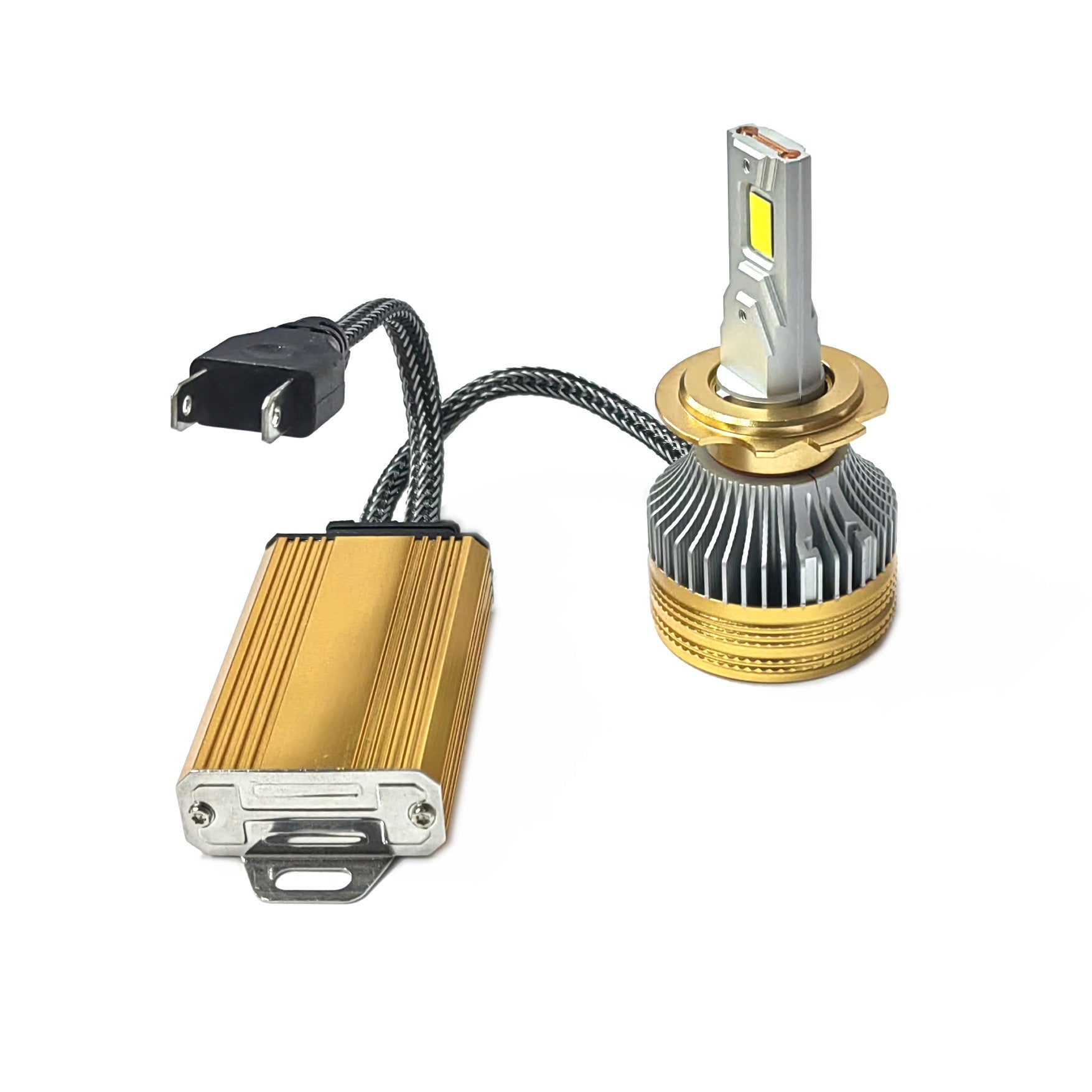

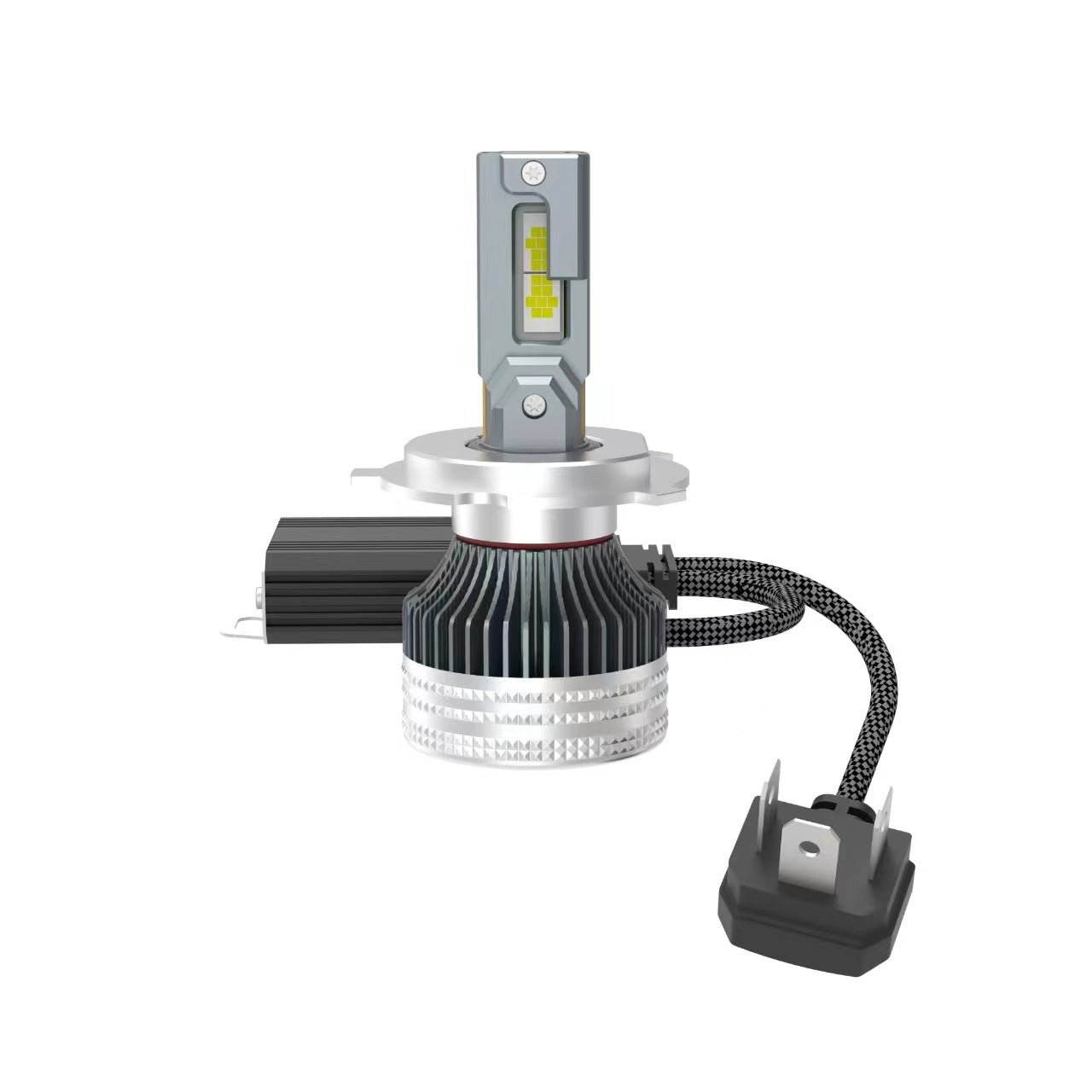

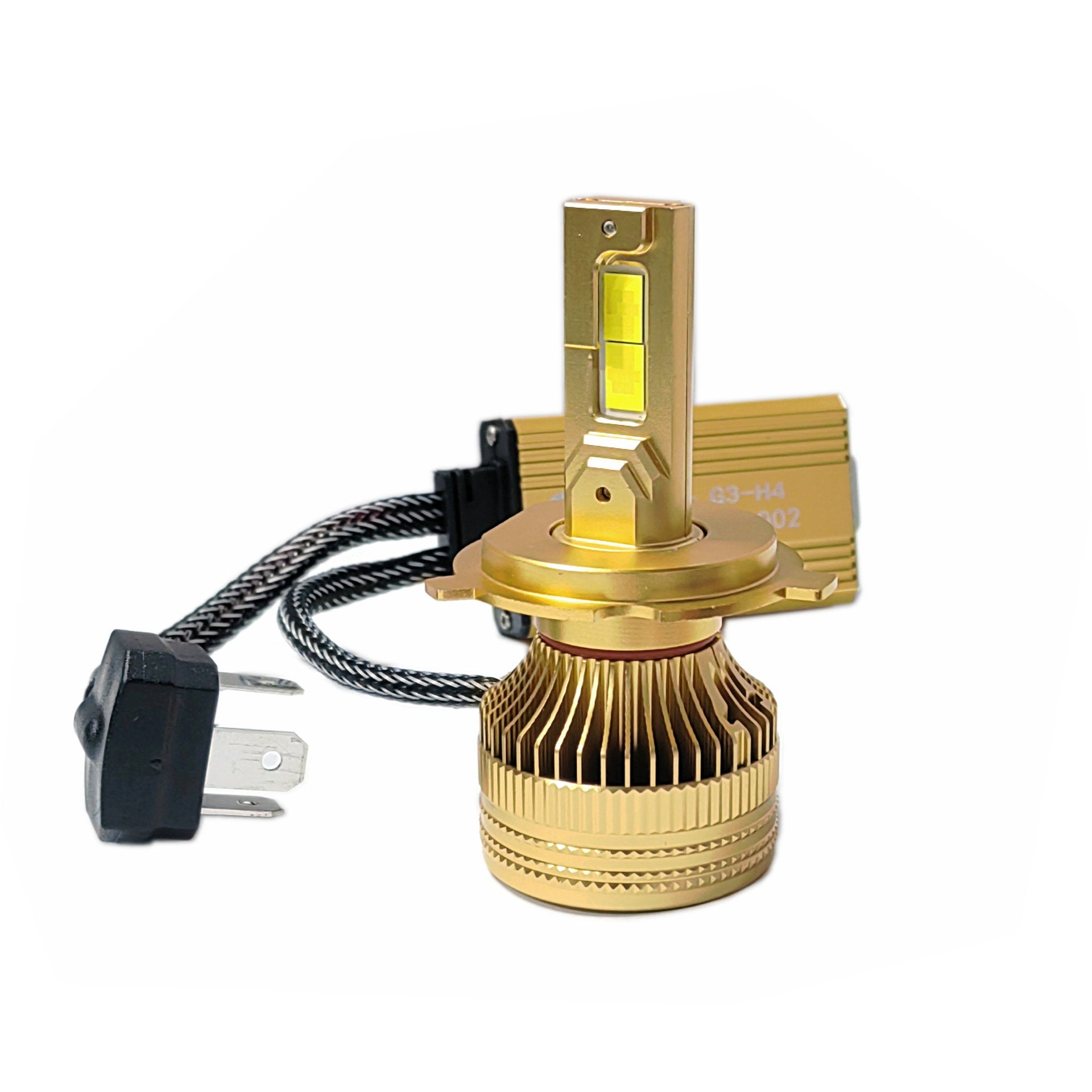

120W Ultra High Power CSP LED Car Headlight Bulbs

Upgrade your vehicle's automotive lighting with the YERBW G3PLUS High-Power CSP LED Headlight Conversion Kit (Item No. G3PLUS). Engineered with heavy-duty aviation aluminum, dual heat-conducting copper tubes, and an external high-speed cooling fan, this ultra-bright LED bulb set delivers an incredible output of 120W and 20,000 lumens of crisp 6500K cool white illumination per bulb.

Designed for seamless integration into modern 12V and 24V vehicles (DC 12V–24V), the G3PLUS series includes an external Canbus intelligent driver that eliminates dashboard error codes and hyper-flashing. Built around premium CSP 7035 LED chips, these IP68 waterproof bulbs provide immediate zero-delay ignition, superior beam focus, and efficient thermal dissipation for an extended lifespan exceeding 30,000 hours under extreme temperatures (-40°C to +80°C).

Key features and technical specifications include:

* High-Output CSP 7035 LED Chips: Produces a high-intensity 20,000-lumen beam output per bulb at a clean 6500K daylight-white color temperature.

* Dual Copper Tube Thermal Management: Combines dual heat-conducting copper liquid tubes, an aviation aluminum heatsink, and a high-RPM base fan for rapid thermal dissipation.

* External Canbus Intelligent Driver: Integrated external driver circuit decodes voltage fluctuations, preventing OBC dashboard light warnings and flicker issues.

* Instant 0-Second Ignition: Reaches full luminance immediately without the slow warmup delays of halogen or legacy xenon HID assemblies.

* IP68 All-Weather Waterproofing: Completely sealed against water submersion, dust, freezing temperatures, and harsh road debris.

* Global Safety & Export Certifications: Manufactured to European lighting guidelines with E-MARK, CE, ISO9001, and RoHS quality certifications.

* Product Specifications:

* Brand: YERBW

* Model / Item Code: G3PLUS / G3

* Origin: China

* Product Type: High-Power Automotive CSP LED Headlight / Fog Light Bulb

* Primary Housing Material: Aviation-Grade Aluminum Alloy & Dual Copper Heat Tubes

* Light Source Type: CSP 7035 High-Luminance LED Chips

* Input Power Rating: 120W per Bulb

* Operating Voltage: DC 12V – 24V Wide Voltage Input

* Operating Current: 7.5 A

* Luminous Flux: 12,000 LM – 20,000 LM

* Color Temperature: 6500K Cool White

* Protection Rating: IP68 Waterproof & Dustproof

* Operating Temperature Range: -40°C to +80°C

* Service Lifespan: > 30,000 Hours

* Transmission Compatibility: Suitable for Automatic & Manual Transmission Vehicles

* Available Socket Compatibility:

* Single Beam: H1, H3, H7/H18, H8/H11/H9/H16, 880/881/H27, HB3/9005, HB4/9006, 9012, 5202

* Dual Beam (High/Low): H4/H19, H13, 9004, 9007

Whether retrofitting dim factory halogen bulbs or upgrading high/low beam headlights for off-road or highway driving, the YERBW G3PLUS LED series offers maximum output, effective Canbus decoding, and reliable all-weather longevity.
