36W Cool White IP65 Waterproof Headlight

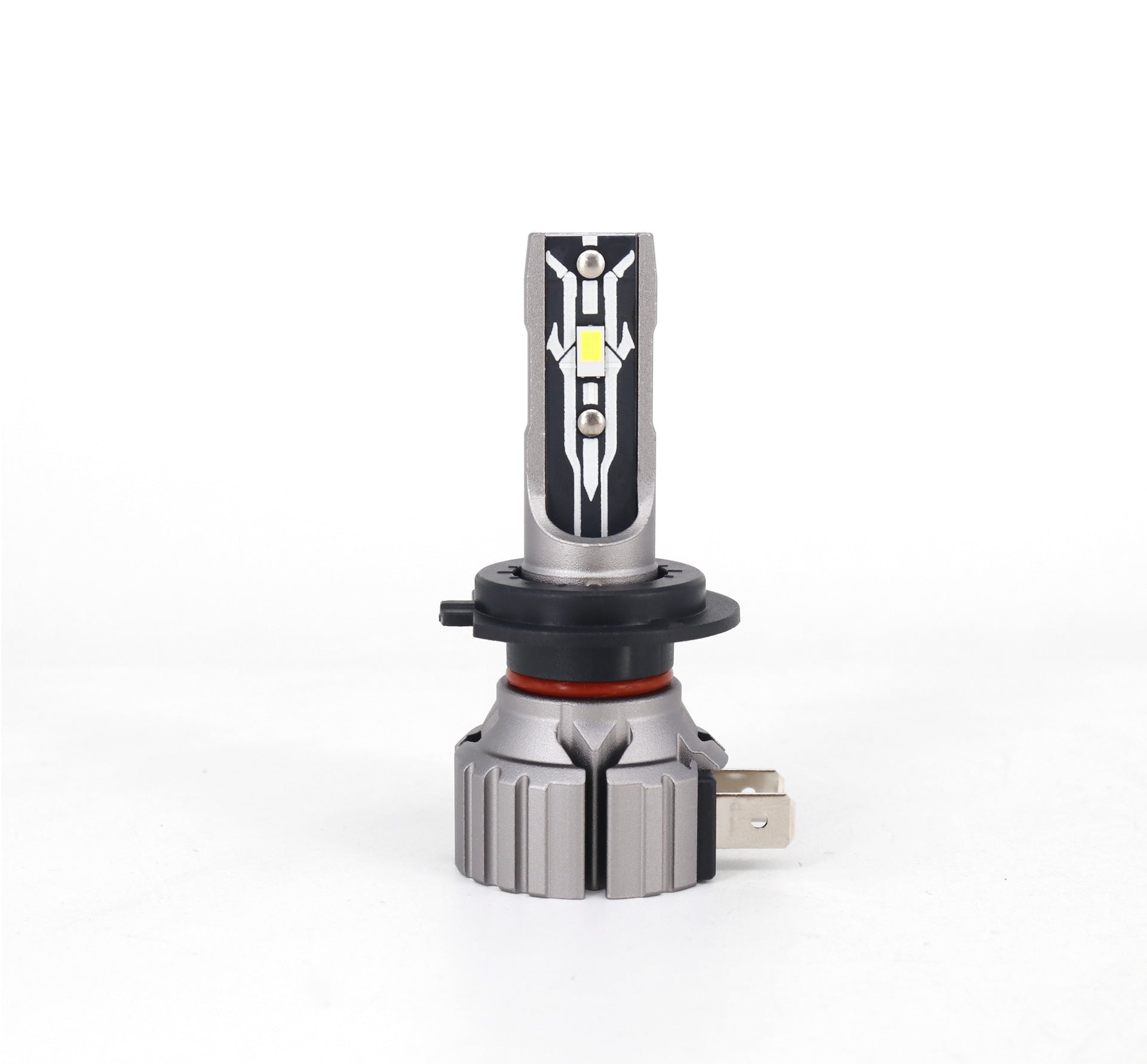

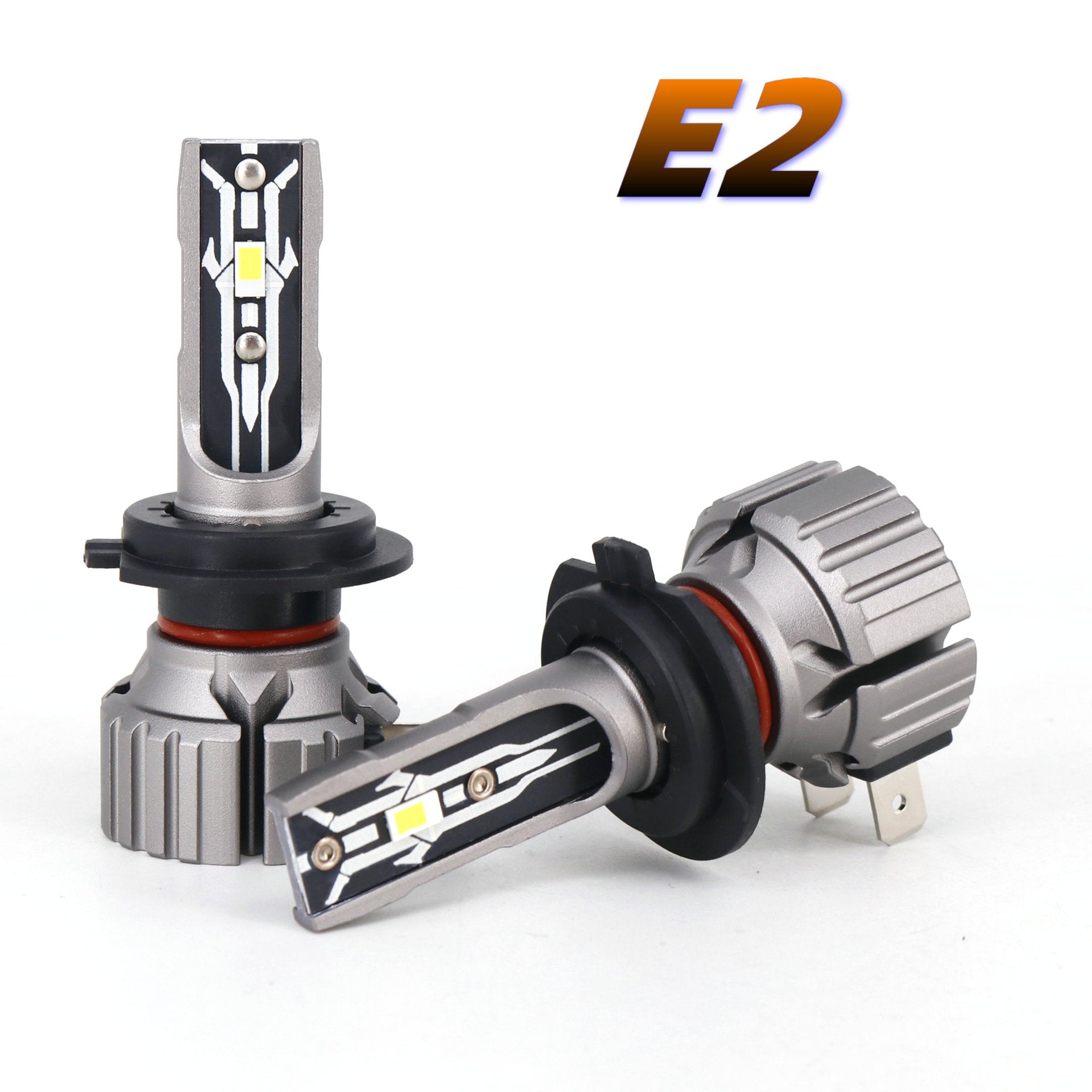

Upgrade your vehicle's headlamps with the Yilbo E2 Series CSP LED Automotive Conversion Kit (Item No. E2). Crafted from high-grade aviation aluminum alloy, this series utilizes high-efficiency CSP 3035 LED chip technology on a two-sided lighting structure to deliver an output of up to 4,000 lumens at a crisp 6500K cool daylight-white color temperature.

Designed for broad compatibility across 12V and 24V automotive electrical systems (DC 12V–24V), the Yilbo E2 headlight series features wide-voltage constant-current drivers that protect against voltage spikes. Built-in cooling structures and high-speed silent fans maintain lower operating temperatures (-40°C to +80°C) compared to standard halogens or intense HID systems. With IP65 waterproof and dustproof protection, the E2 series ensures clear beam visibility through rain, fog, and nighttime driving.

Key features and technical specifications include:

* High-Efficiency CSP 3035 LED Chips: Double-sided emission delivers up to 4,000 lumens of focused light with instant 0-second startup delay.

* Aviation Aluminum & Integrated Fan Cooling: Robust aluminum body paired with an integrated bottom cooling fan effectively dissipates heat to extend bulb life beyond 30,000 hours.

* Energy-Efficient Circuitry: Consumes up to 40% less energy than standard 55W/60W halogen bulbs, reducing electrical system load and battery stress.

* IP65 All-Weather Protection: Fully weather-sealed construction prevents moisture, mud, and dust intrusion in extreme environment conditions (-40°C to +80°C).

* Wide Voltage Compatibility: Supports DC 12V–24V wide-range voltage input, fitting passenger cars, trucks, and off-road vehicles.

* 12-Month Manufacturer Warranty: Built to European quality standards and certified with E-MARK, CE, ISO9001, and RoHS certifications.

* Product Specifications:

* Brand: Yilbo (亿波)

* Model / Item Code: E2

* Origin: China

* Product Type: Automotive CSP LED Headlight / Fog Light Bulb

* Primary Housing Material: Aviation Aluminum Alloy

* Light Source Type: CSP 3035 LED Chips (Double-Sided Light Emission)

* Input Power: 26W – 36W per Bulb

* Operating Voltage: DC 12V – 24V

* Operating Current: 3.2 A

* Luminous Flux: 3,600 LM – 4,000 LM per Bulb

* Color Temperature: 6500K Cool White

* Protection Rating: IP65 Waterproof & Dustproof

* Operating Temperature Range: -40°C to +80°C

* Service Lifespan: > 30,000 Hours

* Package Dimensions: 12 cm x 12 cm x 5 cm

* Warranty: 12 Months

* Available Bulb Socket Configurations:

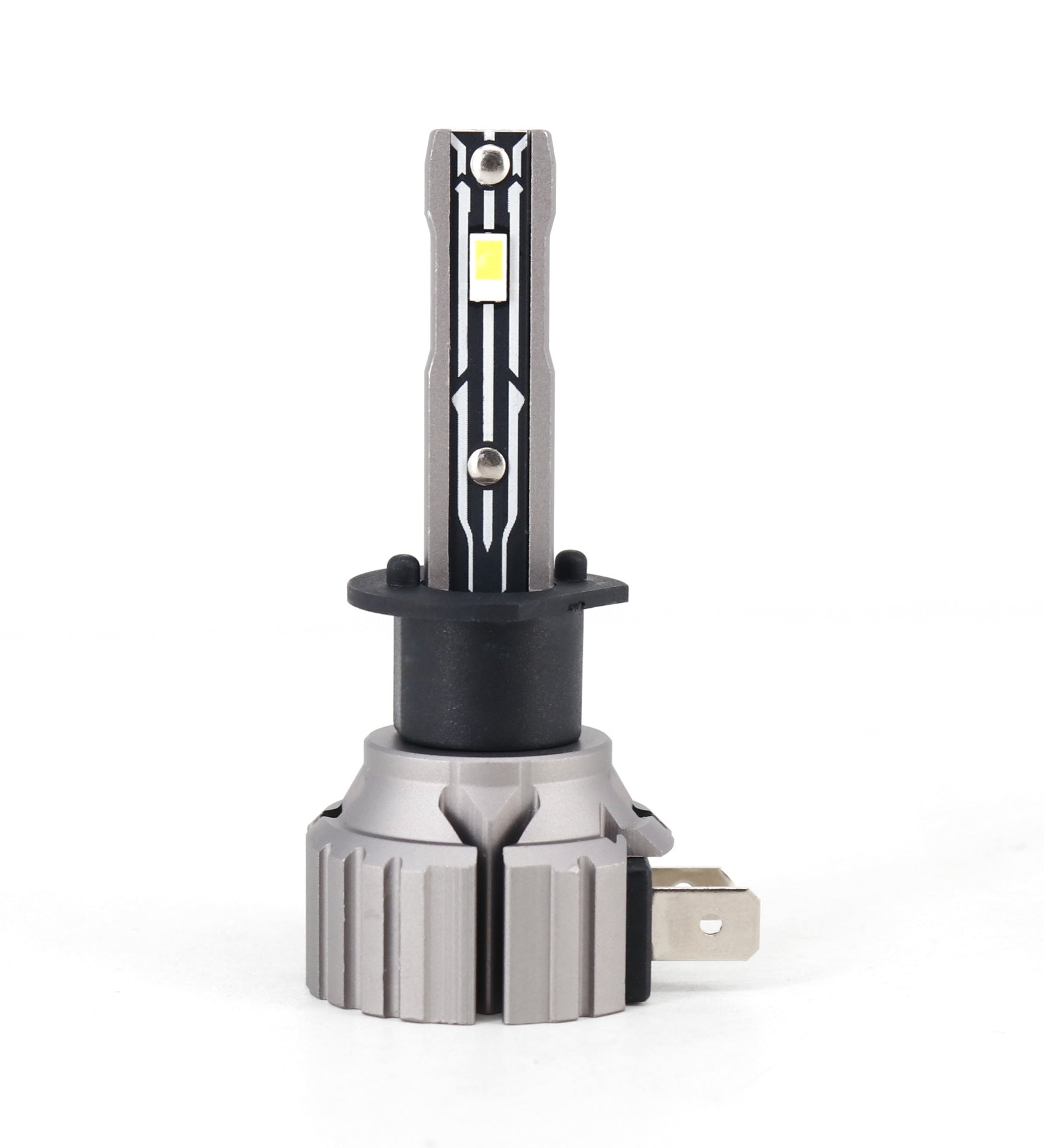

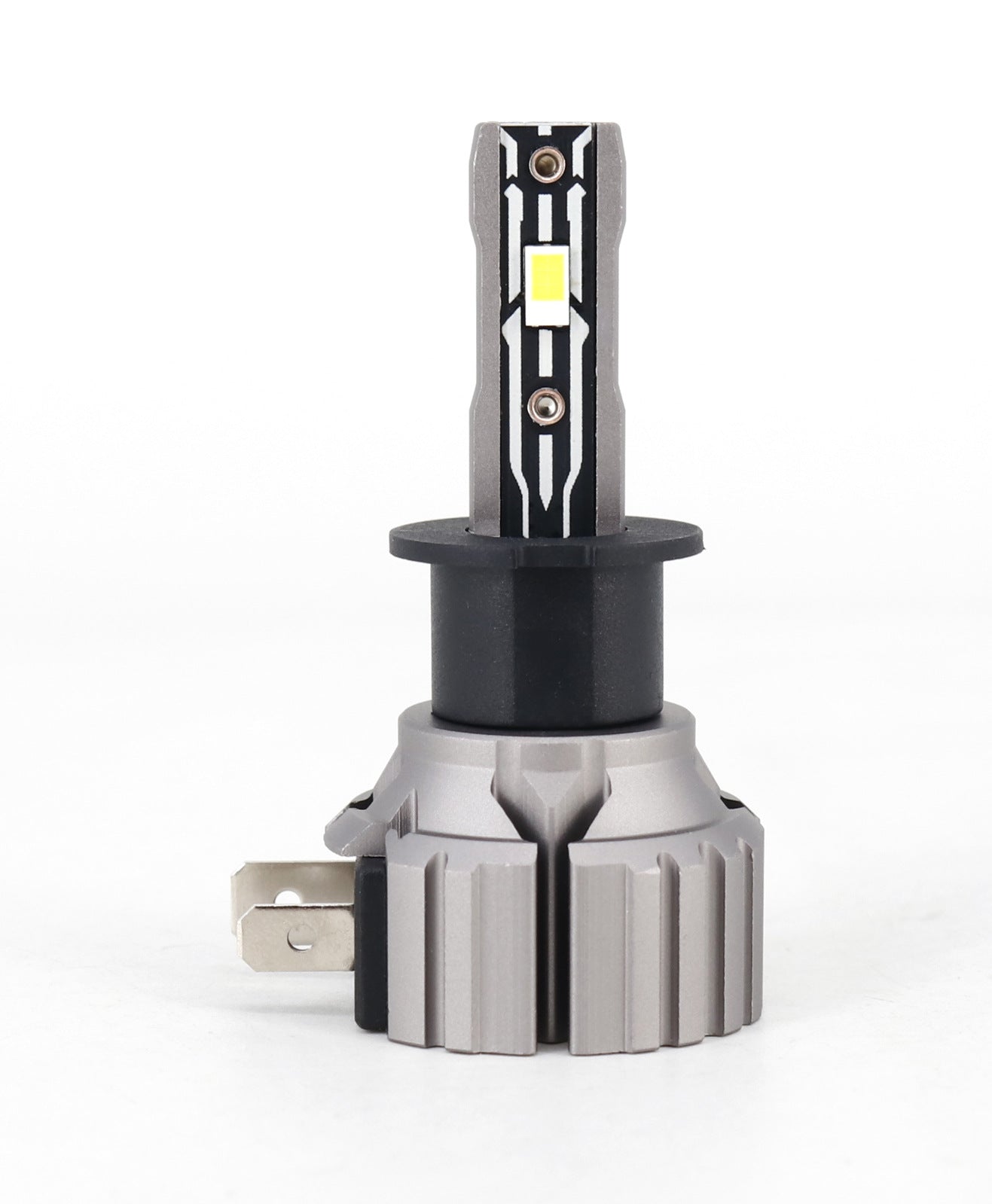

* Single Beam: H1, H3, H7, H8, H9, H11, H16 / 5202, 880 / 881, 9005 (HB3), 9006 (HB4), 9012

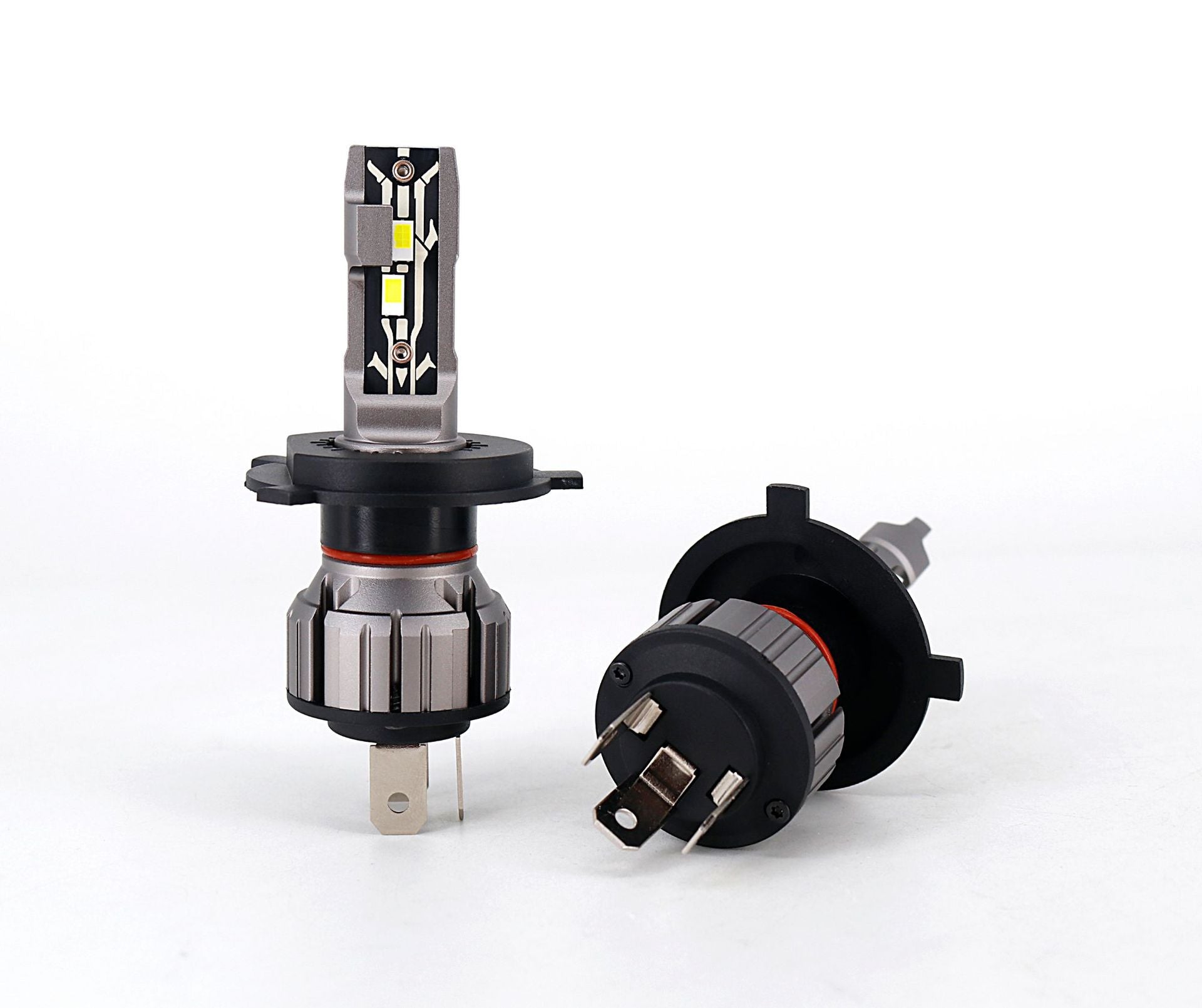

* Dual Beam (High/Low): H4 (H/L), H13 (H/L), 9004 (H/L), 9007 (H/L)

Whether replacing halogen fog lights or retrofitting main low/high beam headlights, the Yilbo E2 CSP LED series offers reliable, high-visibility daylight illumination.```
