Universal H1 Headlight Conversion Kit

Upgrade your vehicle's headlight performance and custom style with the 3.0-Inch Bi-Xenon HID Projector Lens Retrofit Kit (Part No. pj3.0). Designed as a universal retrofit for standard H1 bulb sockets, this projector kit utilizes an elliptical reflector combined with a convex optical lens to deliver a sharp, anti-glare low beam cutoff line and a focused, long-range high beam pattern.

Equipped with an internal electromagnetic solenoid for seamless high/low beam switching, the unit includes an integrated LED Halo "Angel Eye" accent ring available in multiple color choices. Operating on 12V DC power with a 35W HID xenon bulb output and 3,200 lumens of brightness, it provides a safe, glare-free, high-performance lighting solution that protects oncoming drivers while illuminating dark roads.

Key features and technical specifications include:

* Bi-Xenon Solenoid Technology: Internal electromagnetic actuator toggles between low beam (with a clear, defined cutoff line) and focused high beam output instantly.

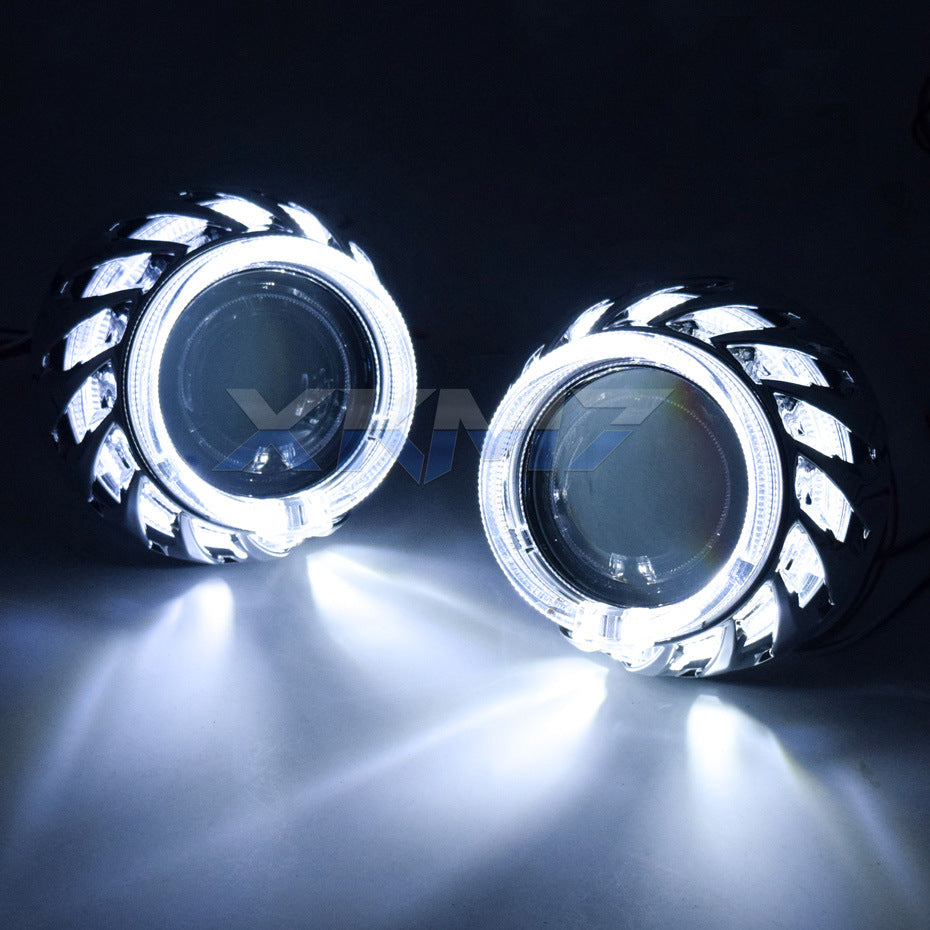

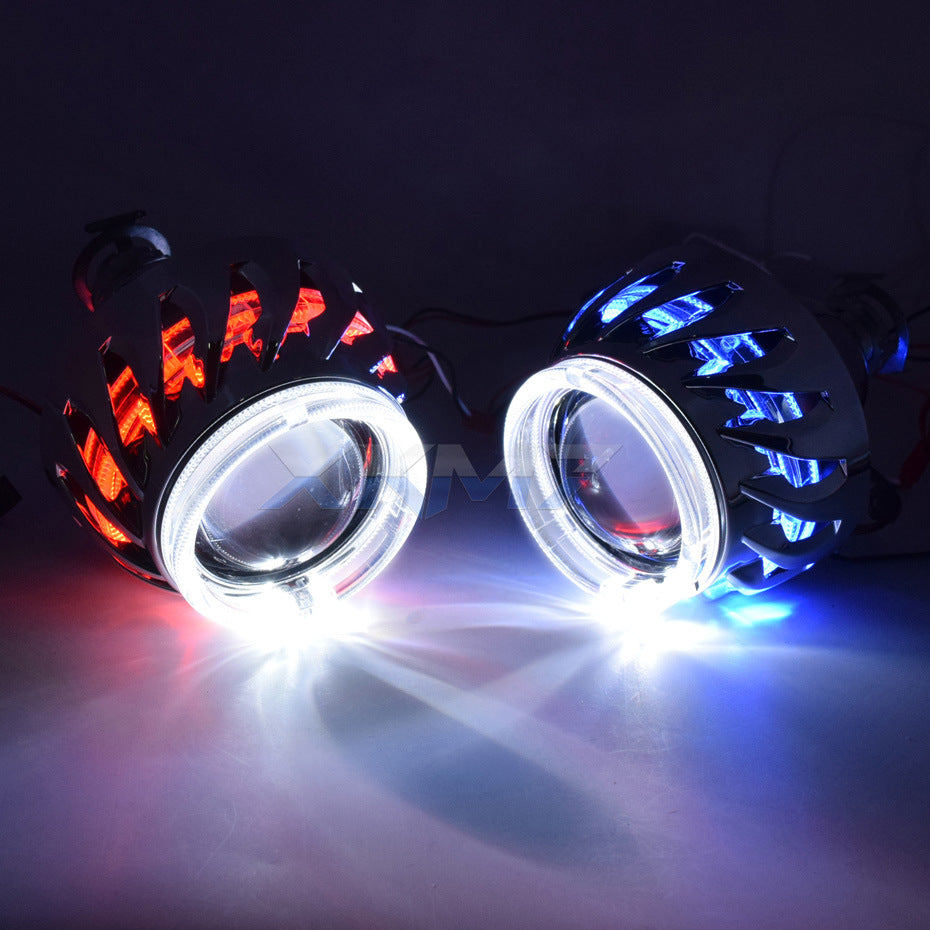

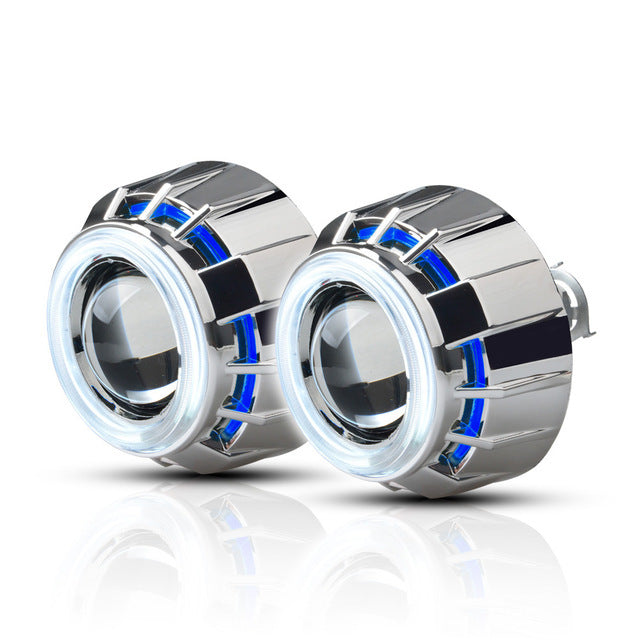

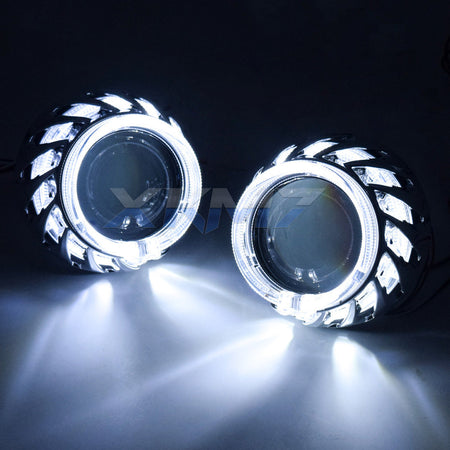

* Custom LED Angel Eye Halo Accent: Surrounding 5W halo ring adds a distinctive visual styling accent, customizable in Blue, Yellow, Green, White, or Red.

* Anti-Glare Road Safety: Optical convex lens shapes light output to comply with beam distribution regulations, preventing dangerous glare for oncoming traffic and pedestrians.

* Non-Destructive Direct Retrofit: Designed to fit into existing H1 headlight housings without destroying the factory headlight assembly structure.

* Wide Range of Color Temperatures: Supports xenon HID bulbs ranging from OEM-style warm white (4300K) to deep blue/violet spectrums (12000K).

* Product Specifications:

* Model / Item Code: pj3.0 (3.0-Inch Projector Lens)

* Brand: Neutral / OEM

* Origin: China

* Product Type: Bi-Xenon HID Headlight Projector Lens & Angel Eye Kit

* Socket Compatibility: All Universal H1 Headlight Housings

* Primary Housing Material: High-Temp Polymer & Metal Shroud Assembly

* Operating Voltage: 12V DC

* Operating Current: 3.2 A

* HID Bulb Power: 35W (23KV Ignition Voltage)

* HID Luminous Flux: 3,200 Lumens

* HID Bulb Lifespan: Up to 3,000 Hours

* Angel Eye Power & Voltage: 5W / 12V DC

* Angel Eye Lifespan: Up to 25,000 Hours

* Protection Level: IP68 Sealed Housing

* Transmission Compatibility: Automatic & Manual Transmission Vehicles

* Packaging Specifications: 1.85 kg per Set (Dimensions: 12 cm x 25 cm x 26 cm)

* Available Color Temperature Options:

* 3000K (Warm Yellow / Fog Performance)

* 4300K (Warm White / Factory OEM Look)

* 6000K (Cool Pure White / Modern Look)

* 8000K (Ice Blue / Crystal Blue)

* 10000K (Deep Blue)

* 12000K (Violet / Deep Blue)

* Available Angel Eye Halo Colors:

* Blue, White, Yellow, Green, Red

* Installation Overview:

1. Carefully remove headlight housing front lens cover.

2. Insert projector lens shaft through the H1 reflector socket opening and secure with locking ring.

3. Apply seal glue and reattach the outer lens cover.

4. Install H1 HID bulb into projector base and secure rear dust cover.

Whether upgrading halogen headlights for night driving clarity or retrofitting custom halo projector lights, this 3.0-inch bi-xenon kit delivers focused beam control and distinct style.```
